Case study: Installation of new coupling and fast repair of a chemical tanker’s propeller equipment

20
Case study: Installation of new coupling and fast repair of a chemical tanker’s propeller equipment

MarineShaft came to the rescue when a chemical tanker needed a new coupling and a fast repair of its propeller equipment. The vessel suffered an incident, which caused damage to the coupling forcing the tanker out of service and into an unplanned docking at a Swedish Shipyard. The shaft hydraulic coupling had rotated and seized onto the propeller shaft, and the only option was to cut the coupling in halves. The owner had to decide how to repair the damages on the shaft and get a new coupling in a hurry.

Repair solution

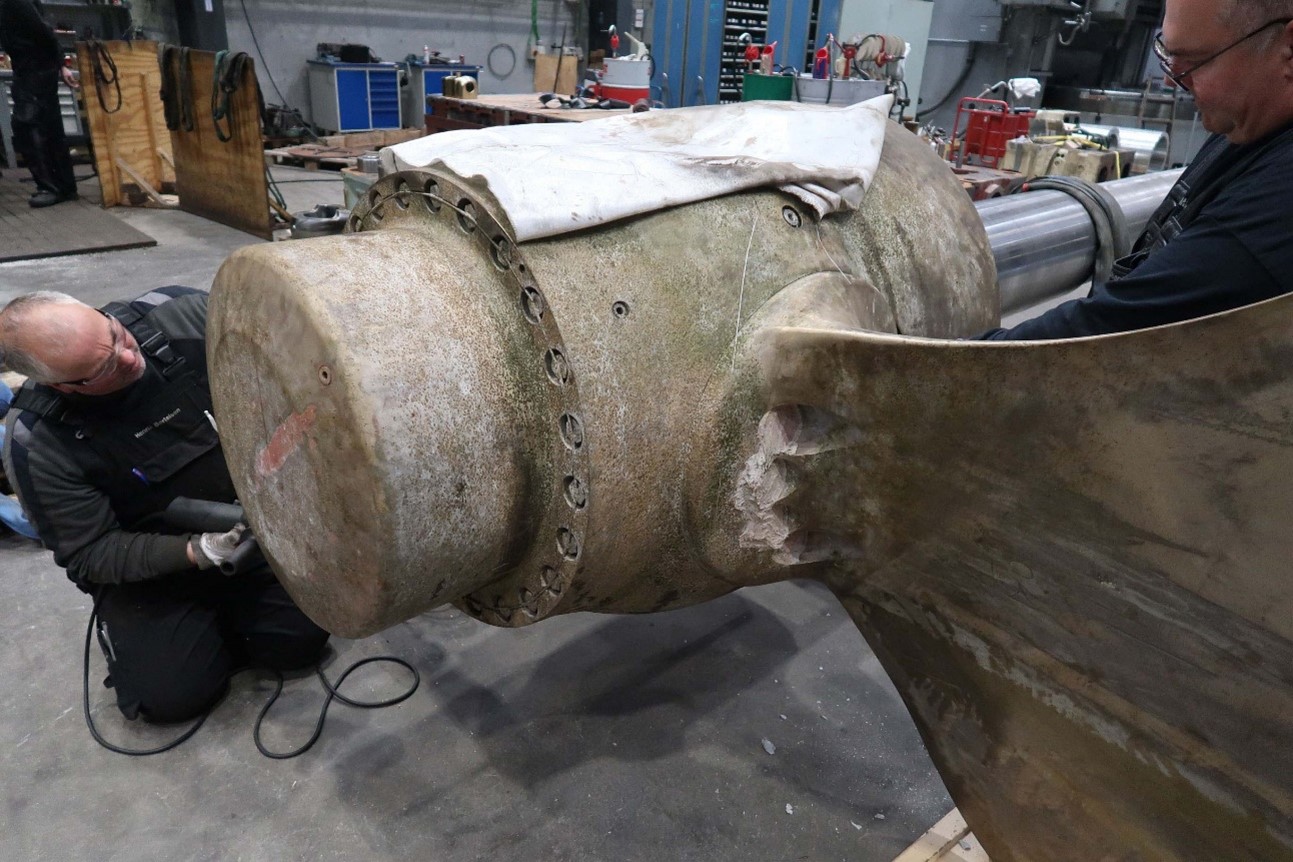

MarineShaft suggested welding up the shaft and machining it to its original size. Regarding the needed coupling, MarineShaft had the material in stock and could offer a new one in 12 working days. MarineShaft suggested repairing the damages to the blade carriers by laser cladding. MarineShaft got the job and received the propeller equipment in our workshop. The propeller equipment was of type ZF – Controllable Pitch Propeller.

Εικόνα1

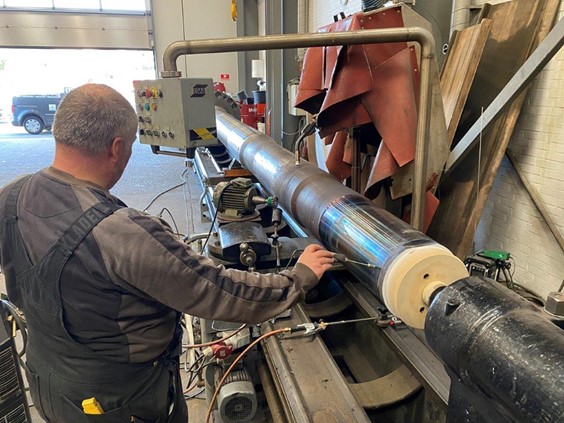

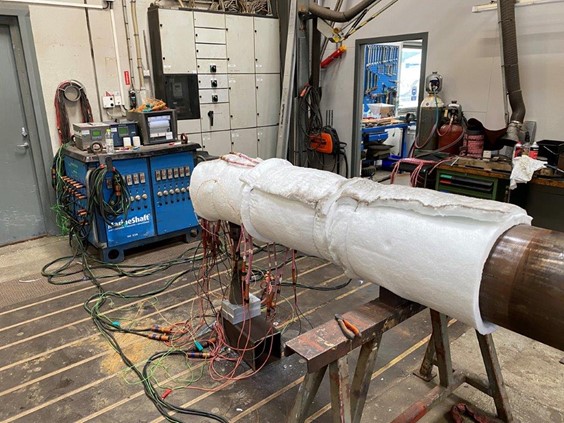

The damages to the shaft cone were welded up using MAG welding in accordance with regulations from the involved classification society ABS. MarineShaft has ABS class approval to weld on propeller shafts using MAG welding. After MAG welding, the welded areas were post-weld heat treated and machined to their original size. NDT tests were carried out by 3rd part Force Technology.

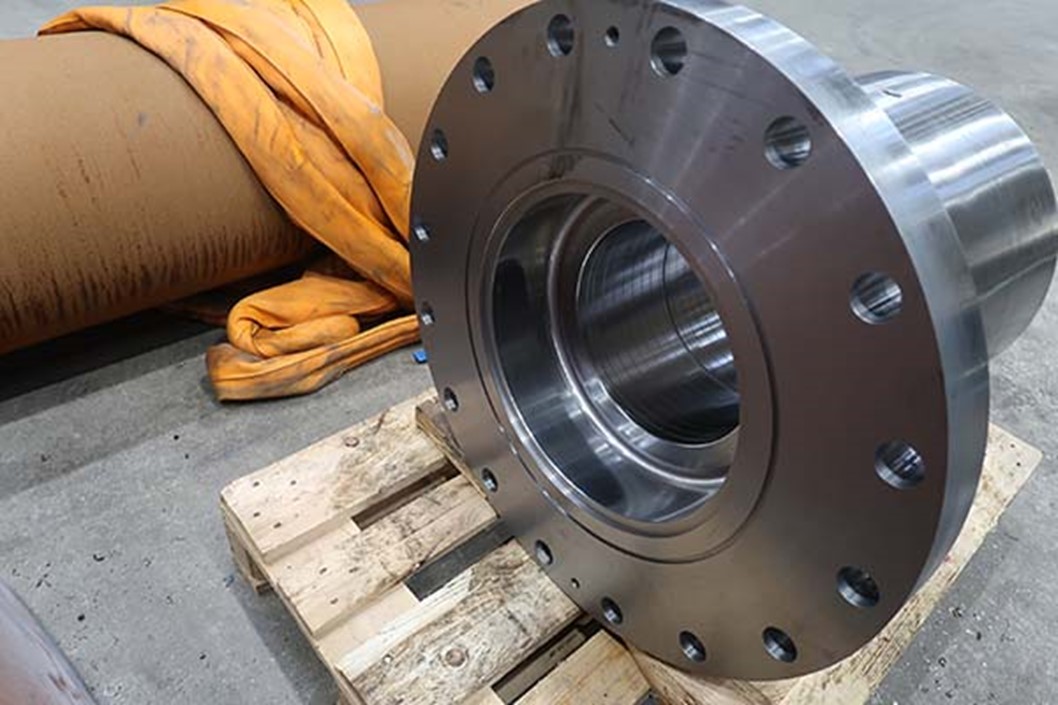

The new coupling was manufactured in 28Mn6 material with a 3.2 material certificate, and the dimension was Ø750/510×650 mm.

Laser Cladding of Hub & Blade carrier

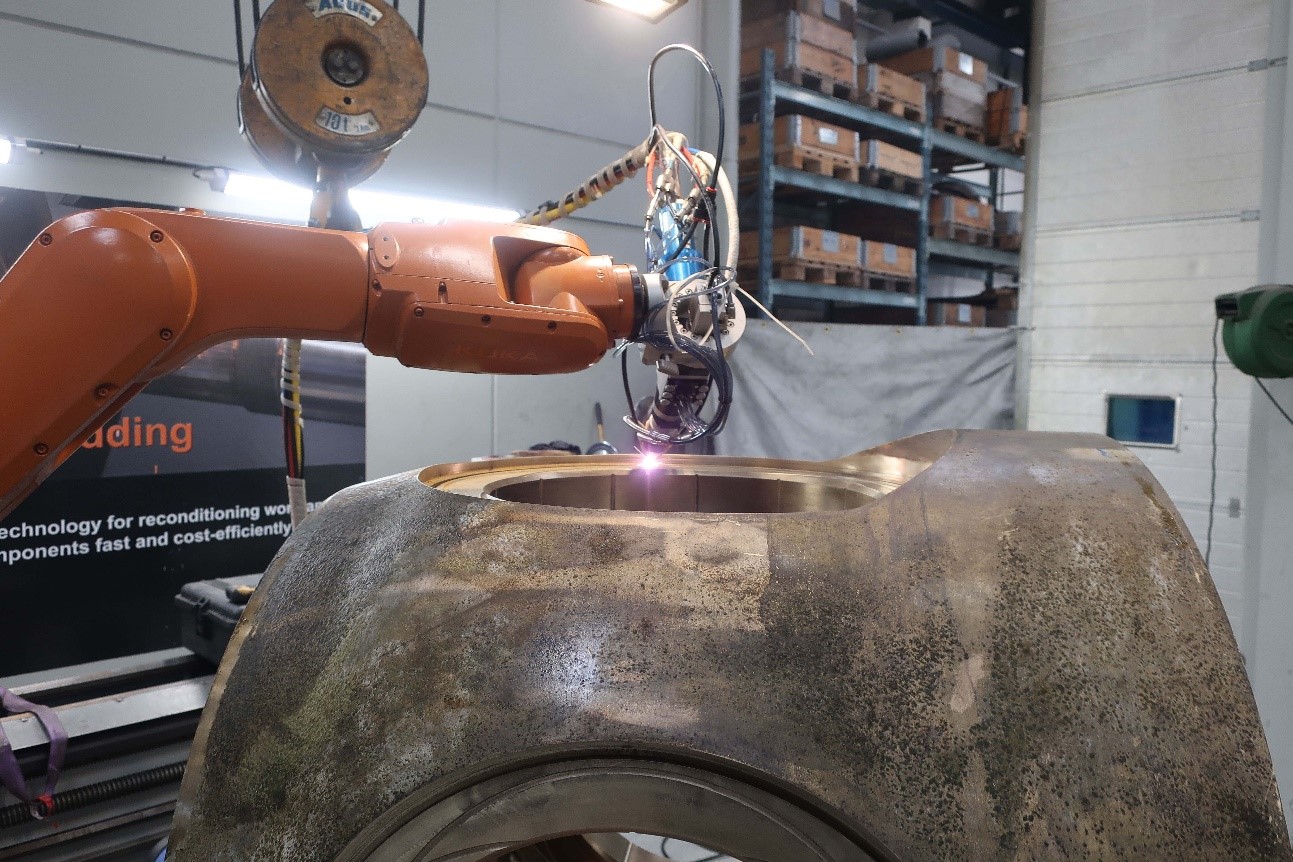

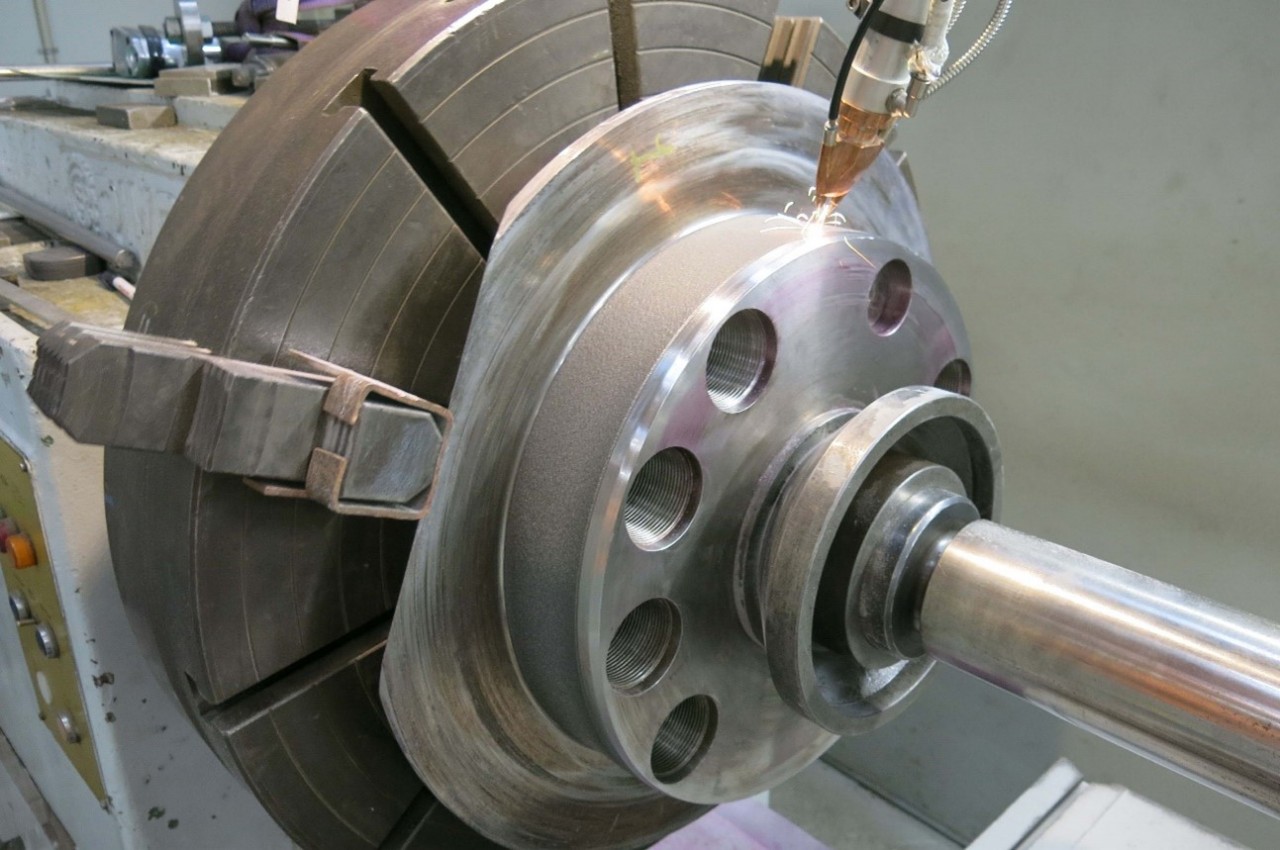

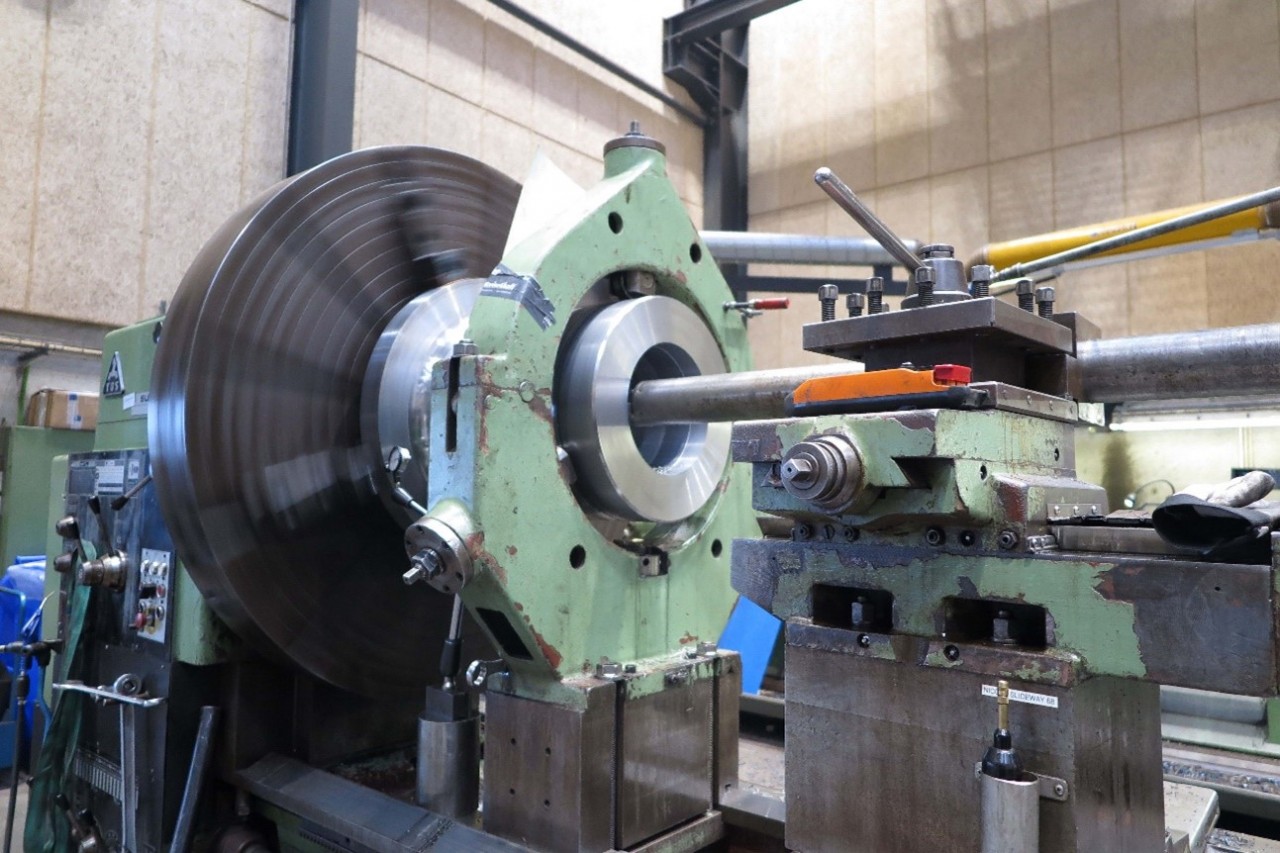

MarineShaft used laser cladding to rebuild the hub´s blade seal areas to their original size. 2 layers of bronze cladding was applied. The hub´s contact surfaces was machined to plain surfaces. The blade carriers was welded up by laser cladding and machined to fit the new dimension of the hub. For this, MarineShaft used Inconel 625 material.

Εικόνα6

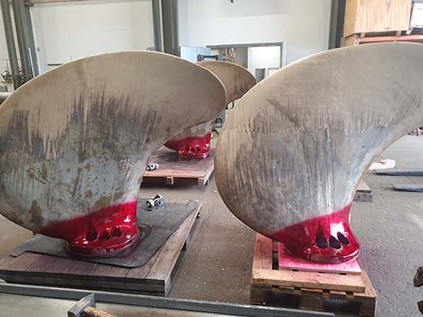

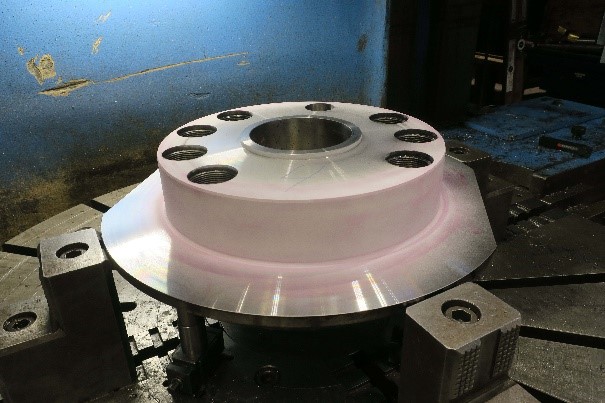

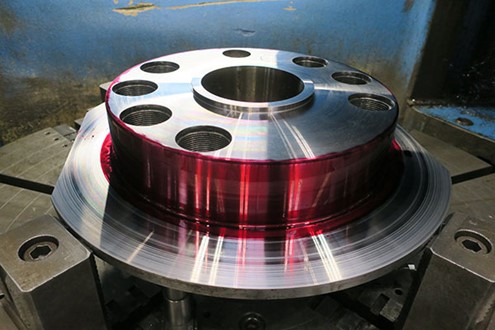

LPI test carried out accordingly

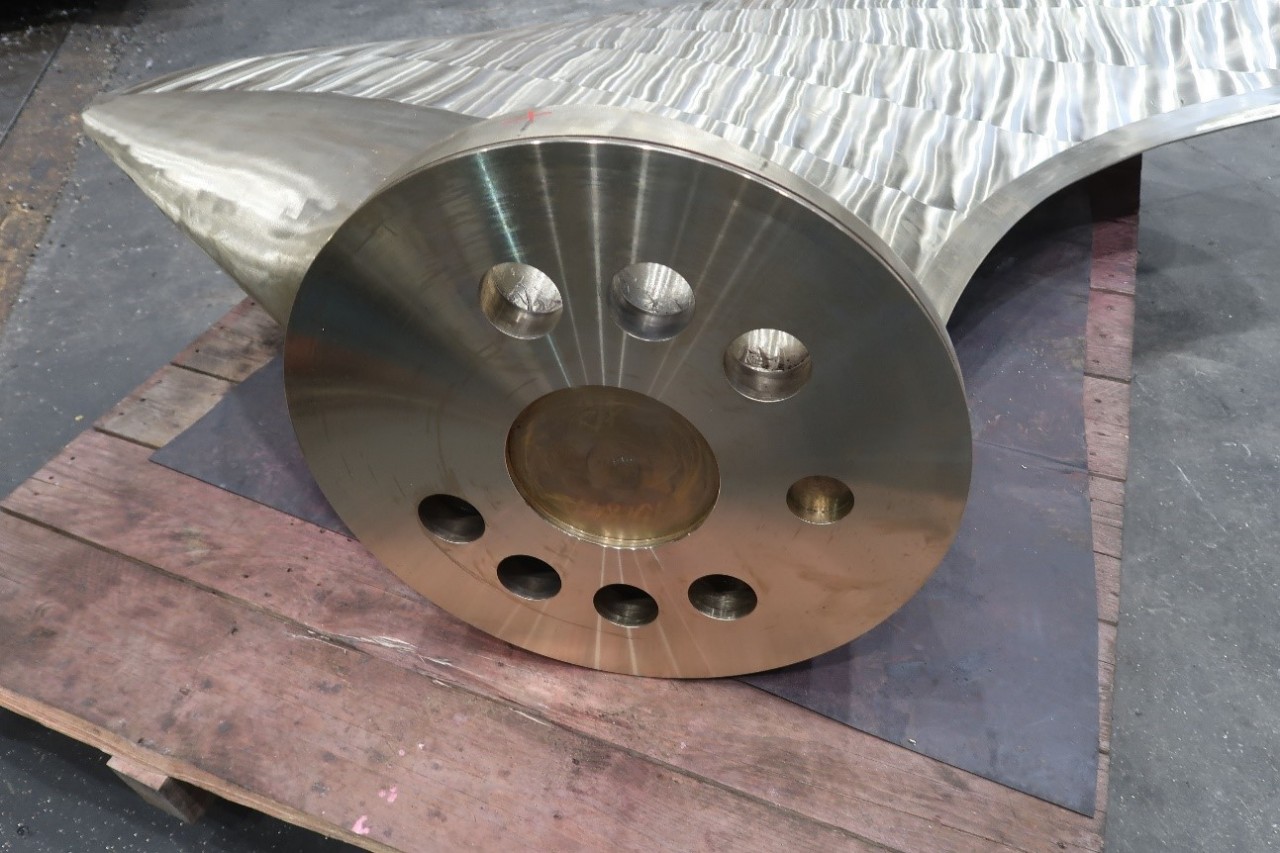

The propeller blades were controlled and polished. MarineShaft machined the blade feet and bolt areas to clean surfaces.

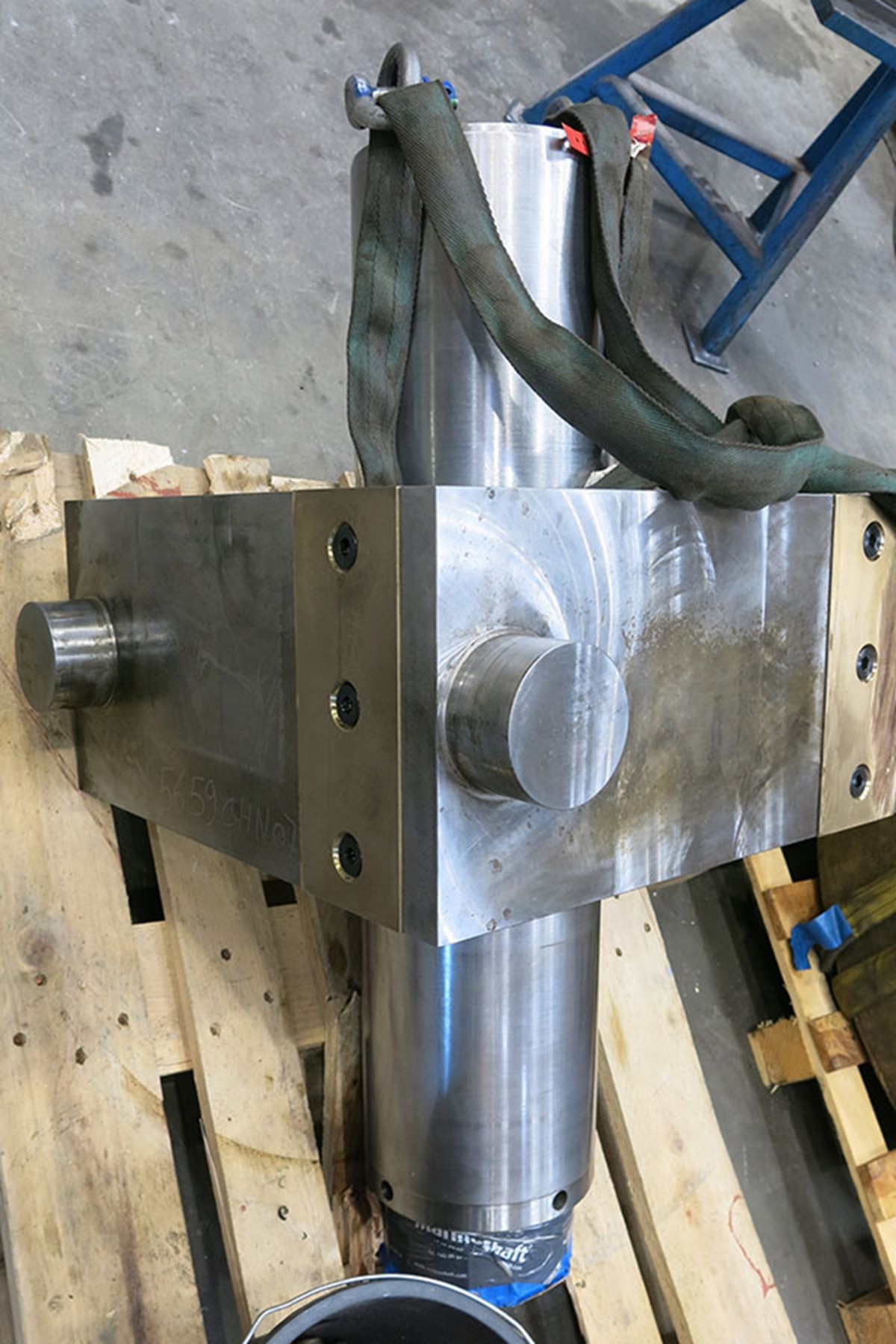

Sliding blocks and Yoke

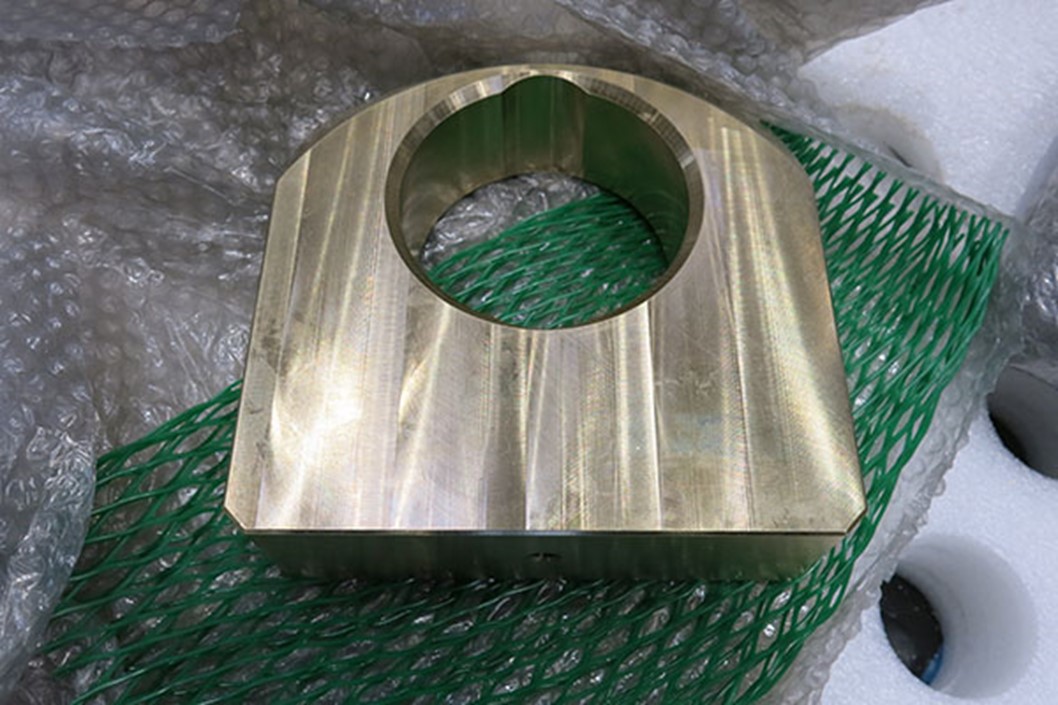

New sliding blocks delivered from Maker was final machined to fit new dimenison of counter parts. The yoke was machined and polished.

Εικόνα13

Εικόνα14

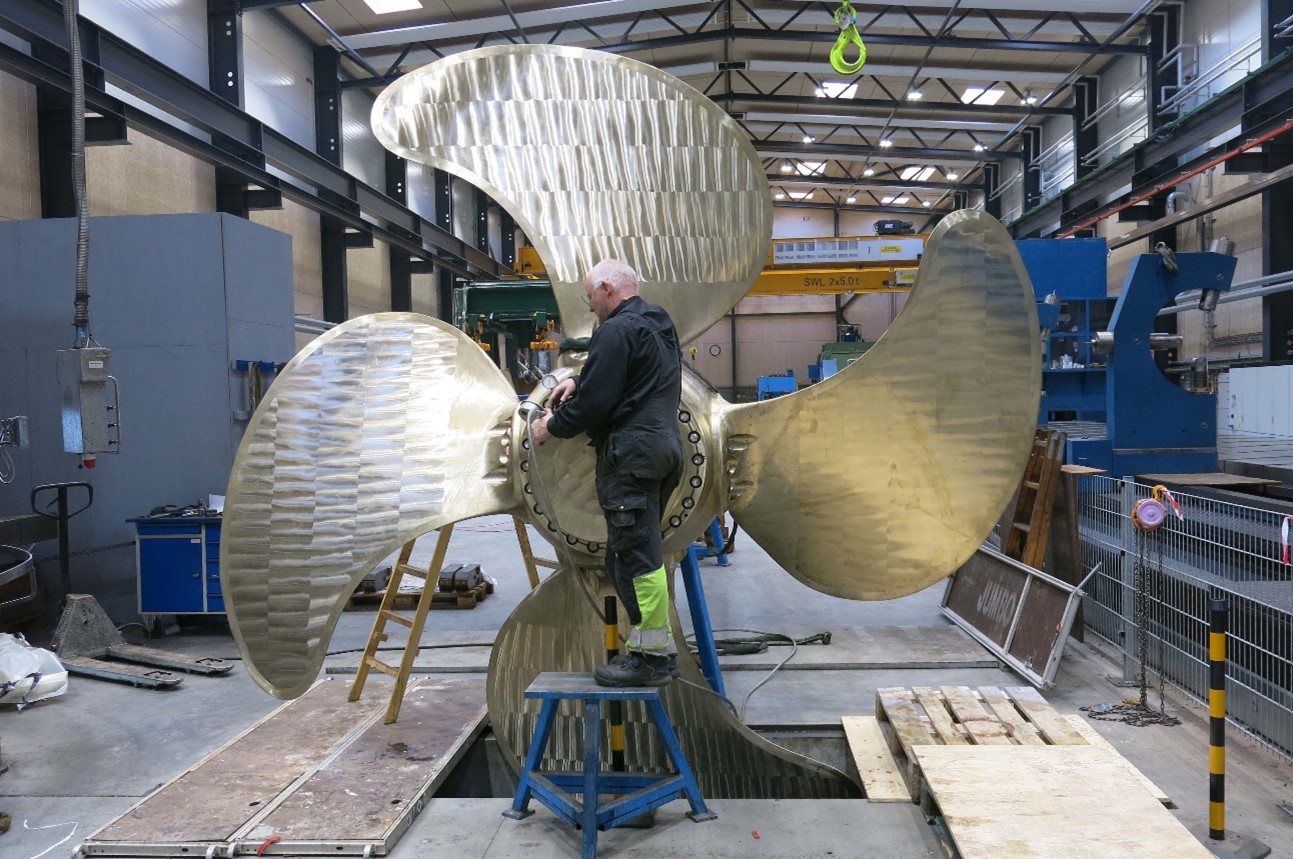

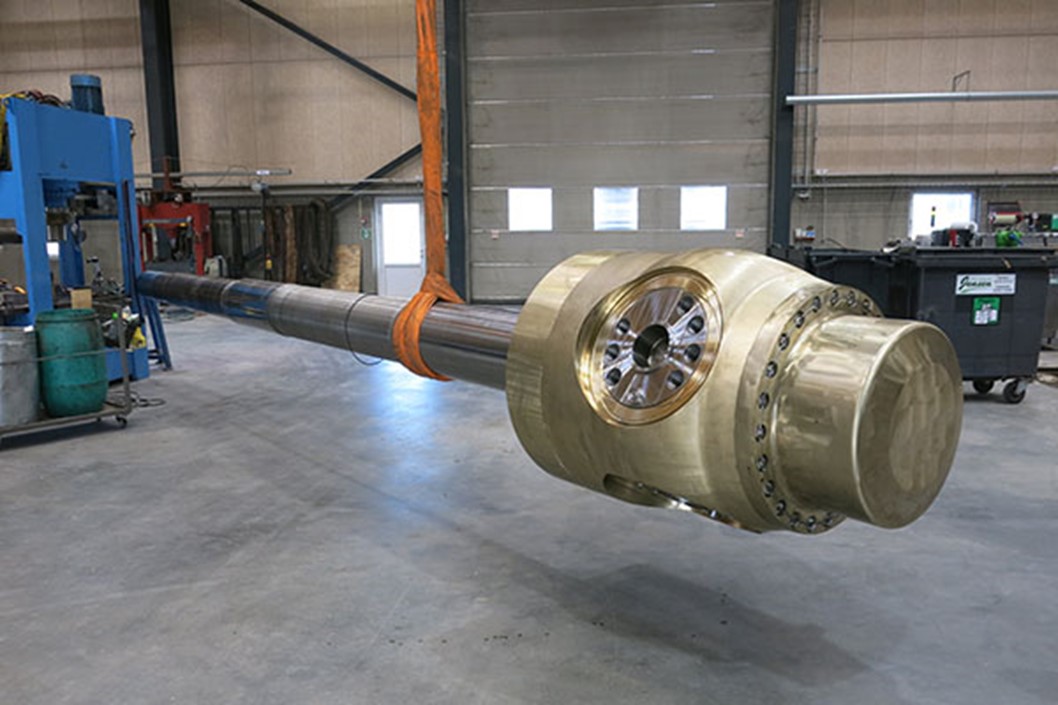

The equipment was reassembled, and the final measurements were carried out and witnessed by an ABS surveyor. The entire repair, including manufacturing was carried out on urgent basis.

Εικόνα15

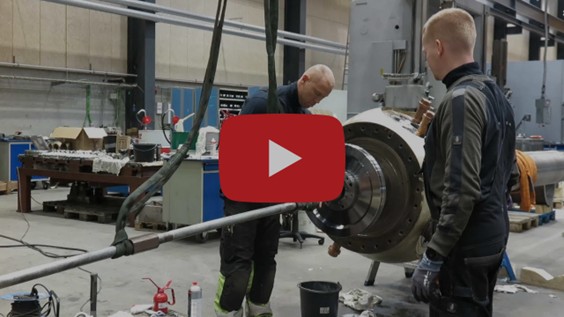

Oil tube for the servo cylinder put in place
